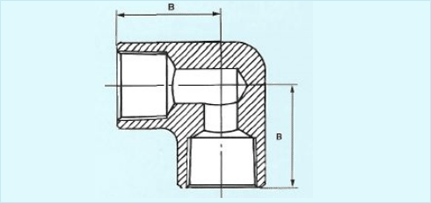

Female Elbow FE
 |
| Part No. |
NPT Thread Female |
B mm |
MWP (PSIG) stainless Steel |
| 1FE |
1/16" |
13 |
7600 |
| 2FE |
1/8" |
17 |
6000 |
| 4FE |
1/4" |
22 |
6700 |
| 6FE |
3/8" |
26 |
6200 |
| 8FE |
1/2" |
30 |
5100 |
| 12FE |
3/4" |
34 |
4100 |
| 16FE |
1'' |
41 |
3900 |
| 20FE |
1-1/4" |
43 |
3200 |
| 24FE |
1-1/2" |
53 |
2500 |
| 32FE |
2" |
61 |
2300 |
|

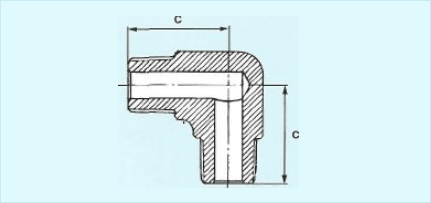

Male Elbow FE
 |
| Part No. |
NPT Thread Female |
C mm |
MWP (PSIG) stainless Steel |
| 1ME |
1/16" |
18 |
10000 |
| 2ME |
1/8" |
20 |
10000 |
| 4ME |
1/4" |
28 |
8200 |
| 6ME |
3/8" |
31 |
7600 |
| 8ME |
1/2" |
37 |
7300 |
| 12ME |
3/4" |
40 |
6700 |
| 16ME |
1'' |
50 |
5200 |
| 20ME |
1-1/4" |
61 |
4300 |
| 24ME |
1-1/2" |
67 |
3200 |
| 32ME |
2" |
76 |
2800 |
|
Female Elbow 45° FVE
 |
| Part No. |
NPT Thread Female |
B mm |
MWP (PSIG) stainless Steel |
| 1FVE |
1/16" |
12 |
7000 |
| 2Fve |
1/8" |
13 |
5500 |
| 4Fve |
1/4" |
18 |
5600 |
| 6Fve |
3/8" |
19 |
5000 |
| 8Fve |
1/2" |
24 |
4500 |
| 12Fve |
3/4" |
25 |
3500 |
| 16Fve |
1'' |
30 |
3500 |
| 20Fve |
1-1/4" |
37 |
3100 |
| 24Fve |
1-1/2" |
37 |
2500 |
| 32Fve |
2" |
40 |
2300 |
|
|
|
