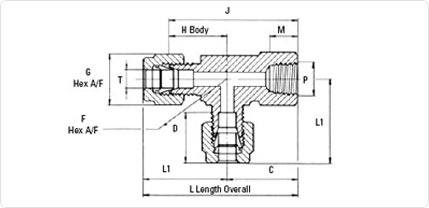

FEMALE RUN TEES

METRIC RANGE

Dimensions in mm

Part No.

T o/d

P

L1 Length

M

C

F

G
Nut

H
Body

J

L

6mTFT2

6

1/8

29

10

20

12

14

20

40

49

6mTFT4

6

1/4

32

14

23

19

14

23

46

55

6mTFT6

6

3/8

34

14

23

24

14

25

48

57

6mTFT8

6

1/2

36

22

28

27

14

27

55

64

8mTFT2

8

1/8

30

10

23

12

17

21

44

53

8mTFT4

8

1/4

33

14

23

19

17

24

47

56

8mTFT6

8

3/8

35

14

23

24

17

26

49

58

8mTFM8

8

1/2

37

22

28

27

17

26

56

65

10mTFT2

10

1/8

33.5

10

23

19

19

25

46

56.5

10mTFT4

10

1/4

33.5

14

23

19

19

25

48

56.5

10mTFT6

10

3/8

33.5

14

23

24

19

27

50

58.5

10mTFT8

10

1/2

37.5

22

28

27

19

29

57

65.5

12mTFT4

12

1/4

36

14

23

19

22

25

48

59

12mTFT6

12

3/8

38

14

23

24

22

27

50

61

12mTFT8

12

1/2

40

22

28

27

22

29

50

68

16mTFT8

16

1/2

41

22

28

27

27

29

57

68

IMPERIAL RANGE

Dimensions in inches

Part No.

T o/d

P

L1 Length

M

c

F

G Nut

H Body

J

L

2TFT2

1/8

1/8

.95

.39

.75

.50

7/16

.69

1.44

1.70

2TFT4

1/8

1/4

1.07

.59

.88

.69

7/16

.81

1.69

1.95

3TFT2

3/16

1/8

.98

.39

.75

.50

1/2

.72

1.47

1.73

4TFT2

1/4

1/8

1.04

.39

.75

.50

9/16

.75

1.50

1.79

4TFT4

1/4

1/4

1.17

.59

.88

.69

9/16

.88

1.76

2.05

5TFT2

5/16

1/8

1.17

.39

.75

.63

5/8

.88

1.63

1.92

6TFT4

3/8

1/4

1.23

.59

.88

.69

11/16

.94

1.82

2.11

8TFT6

1/2

3/8

1.43

.59

.88

.81

7/8

1.03

1.91

2.31

8TFT8

1/2

1/2

1.52

.78

1.12

1.00

7/8

1.12

2.24

2.64

10TFT8

5/8

1/2

1.52

.78

1.12

1.00

1

1.12

2.24

2.64
