METRIC RANGE |
Dimensions in mm
|

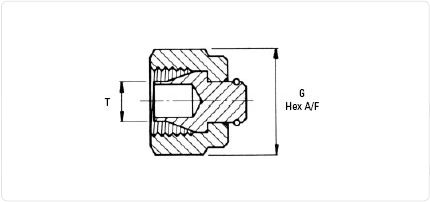

| Part No. |
T o/d |
G Nut |
6m PLUG |
6 |
14 |
8m PLUG |
8 |
17 |
10m PLUG |
10 |
19 |
12m PLUG |
12 |
22 |
16m PLUG |
16 |
27 |
18m PLUG |
18 |
30 |
25m PLUG |
25 |
41 |
IMPERIAL RANGE
|
Dimensions in
inches
|
| Part No. |
T o/d |
G Nut |
2 PLUG |
1/8 |
7/16 |
3 PLUG |
3/16 |
1/2 |
4 PLUG |
1/4 |
9/16 |
5 PLUG |
5/16 |
5/8 |
6 PLUG |
3/8 |
11/16 |
8 PLUG |
1/2 |
7/8 |
10 PLUG |
5/8 |
1 |
12 PLUG |
3/4 |
1-1/8 |
16 PLUG |
1 |
1-1/2 |
|
|
 |
